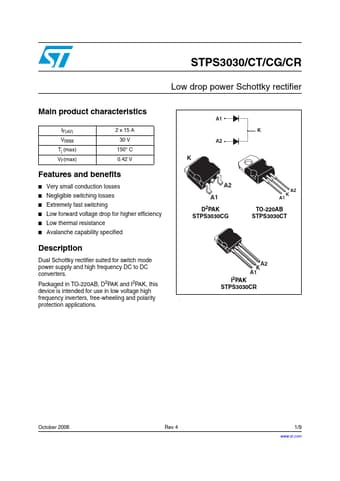

STPS3030/CT/CG/CR Low drop power Schottky rectifier Main product characteristics IF(AV) VRRM Tj (max) VF(max) 2 x 15 A 30 V 150° C 0.42 V Features and benefits * Very small conduction losses * Negligible switching losses * Extremely fast switching * Low forward voltage drop for

STPS3030CT_STMicroelectronics.pdf

STPS3030CG Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS3030CG, STPS3030CT. Please refer to the document for exact specifications by model.

STPS3030CG, STPS3030CT, Low drop power Schottky rectifier

Dual Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

Packaged in TO-220AB, D2PAK and I2PAK, this device is intended for use in low voltage high frequency inverters, free-wheeling and polarity protection applications.

A1 A2 K K A2 A1 D2PAK STPS3030CG
