STPS30100ST - 100V Power Schottky Rectifier

Datasheet Summary

Description

This single Schottky rectifier is ideal for high frequency switch mode power supply.

Housed in a TO-220AB package, the STPS30100ST is optimized for use in notebook and game station adaptors, providing an improved efficiency at both low and high load.

Features

  • Low VF.
  • Good trade-off between leakage current and forward voltage drop.
  • High frequency operation.
  • Avalanche capability specified.

📥 Download Datasheet

Datasheet preview – STPS30100ST

Datasheet Details

Part number STPS30100ST
Manufacturer STMicroelectronics
File Size 192.52 KB
Description 100V Power Schottky Rectifier
Datasheet download datasheet STPS30100ST Datasheet

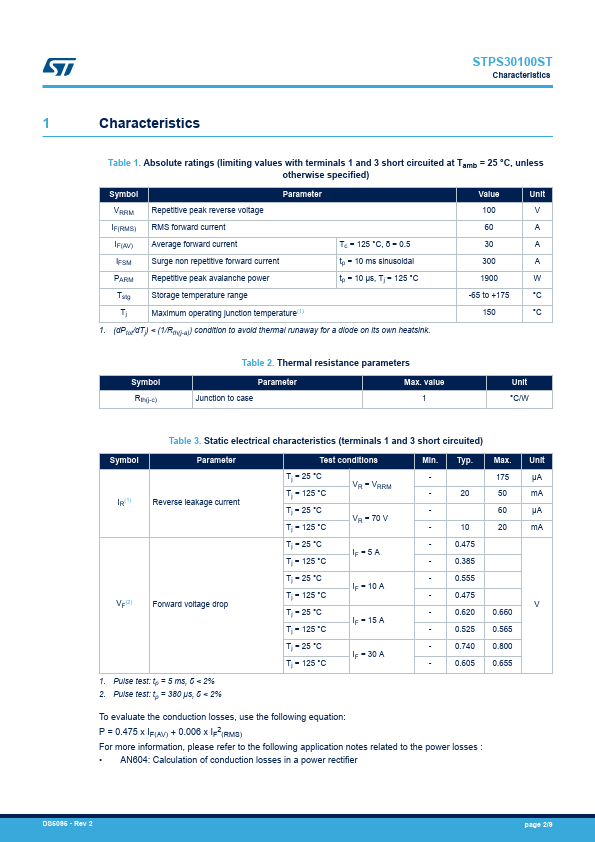

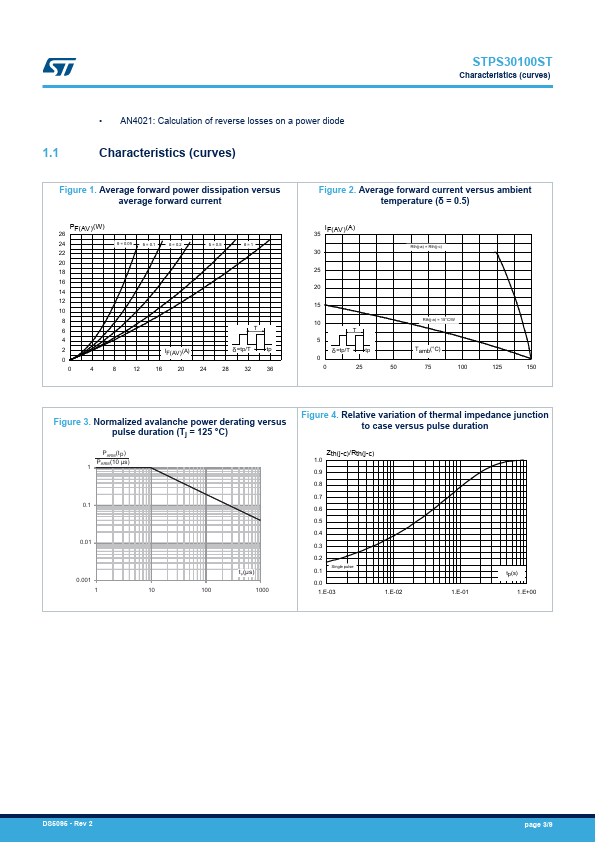

Additional preview pages of the STPS30100ST datasheet.

📁 Similar Datasheet

  • STPS30150CFP - Schottky Barrier Rectifier (INCHANGE)
  • STPS30150CG - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS30150CT - Schottky Barrier Rectifier (INCHANGE)
  • STPS30150CW - Schottky Barrier Rectifier (INCHANGE)
  • STPS30170CG - High Voltage Power Schottky Rectifier (STMicroelectronics)
  • STPS30170CW - High Voltage Power Schottky Rectifier (STMicroelectronics)
  • STPS30170DJF - Power Schottky rectifier (STMicroelectronics)
  • STPS3030 - Low drop power Schottky rectifier (STMicroelectronics)
  • STPS3030C - Low drop power Schottky rectifier (STMicroelectronics)
  • STPS3045C - Power Schottky rectifier (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

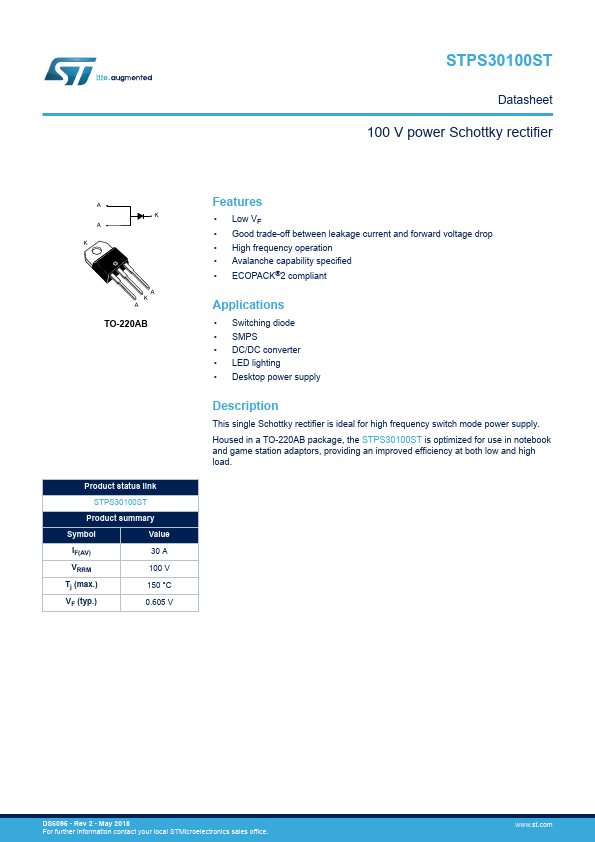

STPS30100ST Datasheet 100 V power Schottky rectifier A K A K A K A TO-220AB Product status link STPS30100ST Product summary Symbol Value IF(AV) 30 A VRRM 100 V Tj (max.) 150 °C VF (typ.) 0.605 V Features • Low VF • Good trade-off between leakage current and forward voltage drop • High frequency operation • Avalanche capability specified • ECOPACK®2 compliant Applications • Switching diode • SMPS • DC/DC converter • LED lighting • Desktop power supply Description This single Schottky rectifier is ideal for high frequency switch mode power supply. Housed in a TO-220AB package, the STPS30100ST is optimized for use in notebook and game station adaptors, providing an improved efficiency at both low and high load.
