STPS3045C Datasheet, Rectifier, STMicroelectronics

STPS3045C Features

  • Rectifier
  • Very small conduction losses
  • Negligible switching losses
  • Extremely fast switching
  • Avalanche rated
  • ECOPACK®2 compliant component for D²P

PDF File Details

Part number:

STPS3045C

Manufacturer:

STMicroelectronics ↗

File Size:

519.72kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. Dual center tap Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged either in TO-

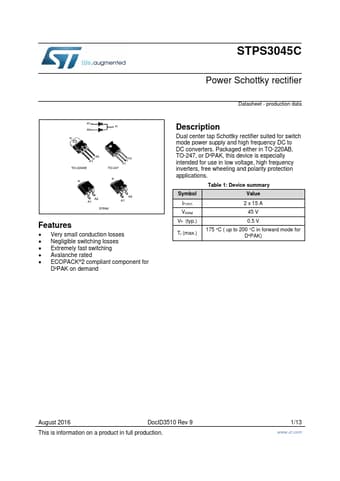

Datasheet Preview: STPS3045C 📥 Download PDF (519.72kb)
Page 2 of STPS3045C Page 3 of STPS3045C

STPS3045C Application

  • Applications Table 1: Device summary Symbol Value IF(AV) VRRM VF (typ.) Tj (max.) 2 x 15 A 45 V 0.5 V 175 °C ( up to 200 °C in forward mode fo
