STPS30150CG, STPS30150C Datasheet - STMicroelectronics

STPS30150CG High voltage power Schottky rectifier

Dual center tap Schottky rectifier designed for high frequency switch mode power supply. Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) 2 x 15 A 150 V 175 °C 0.69 V A2 A1 D2PAK A2 A1 May 2017 DocID7757 Rev 9 This is information on a product in full production. 1/16 www.

STPS30150CG Features

* High junction temperature capability

* Good trade off between leakage current and forward voltage drop

* Low leakage current

* Avalanche capability specified

* Insulated package: TO-220FPAB  Insulating voltage = 2000 VRMS sine

* ECOPACK®2 compliant component for D²PAK on d

STPS30150C_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPS30150CG, STPS30150C. Please refer to the document for exact specifications by model.

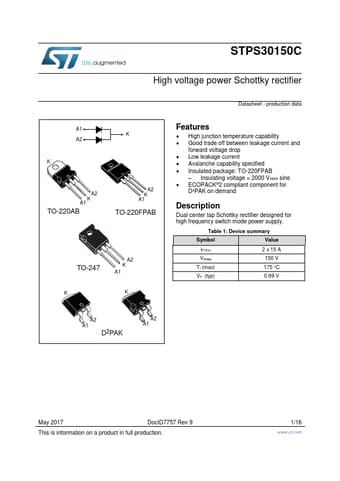

STPS30150CG Datasheet Preview Page 2 STPS30150CG Datasheet Preview Page 3

Datasheet Details

Part number:

STPS30150CG, STPS30150C

Manufacturer:

STMicroelectronics ↗

File Size:

562.19 KB

Description:

High voltage power schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: STPS30150CG, STPS30150C.
Please refer to the document for exact specifications by model.
