TIP36AT - PNP Transistor

TIP36AT Description

isc Silicon PNP Power Transistor .
DC Current Gain- : hFE= 25(Min)@IC = -1. Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -60V(Min). Minimum Lot-to-Lot variations f.

TIP36AT Applications

* Designed for use in general purpose power amplifier and switching applications. ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -

📥 Download Datasheet

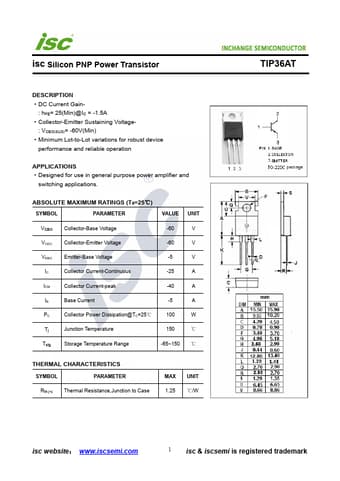

Preview of TIP36AT PDF
datasheet Preview Page 2

Datasheet Details

Part number
TIP36AT
Manufacturer
INCHANGE
File Size
212.65 KB
Datasheet
TIP36AT-INCHANGE.pdf
Description
PNP Transistor
