TIP36B, TIP35, Complementary Silicon Power Transistor

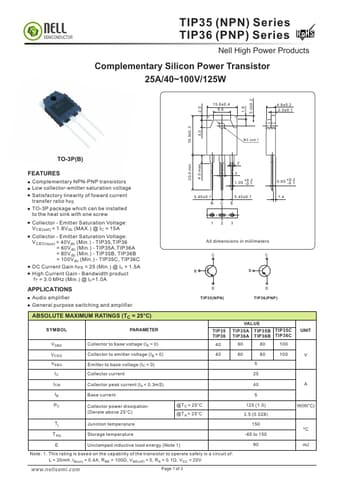

SEMICONDUCTOR TIP35 (NPN) Series TIP36 (PNP) Series RRooHHSS Nell High Power Products Complementary Silicon Power Transistor 25A/40~100V/125W 15.6±0.

datasheet Preview Page 1 from Datasheet4u.com

TIP35-nELL.pdf

TIP36B Datasheet Preview — This datasheet PDF includes multiple part numbers: TIP36B, TIP35. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TIP36B, TIP35

Manufacturer:

nELL

File Size:

216.82 KB

Description:

Complementary Silicon Power Transistor

Note:

This datasheet PDF includes multiple part numbers: TIP36B, TIP35.
Please refer to the document for exact specifications by model.

Features

* Complementary NPN-PNP transistors Low collector-emitter saturation voltage Satisfactory linearity of foward current transfer ratio hFE TO-3P package which can be installed to the heat sink with one screw Collector - Emitter Saturation Voltage: VCE(sat) = 1.8Vdc (MAX. ) @ IC = 15A Collector - Emitter

Applications

* Audio amplifier General purpose switching and amplifier 20.0 min 4.0 max 2 3 1.05 +0.2 -0.1 5.45±0.1 5.45±0.1 BCE 0.65 +0.2 -0.1 1.4 12 3 All dimensions in millimet
