ASAP - HIGH RELIABILITY HYBRID DC-DC CONVERTERS

IRF

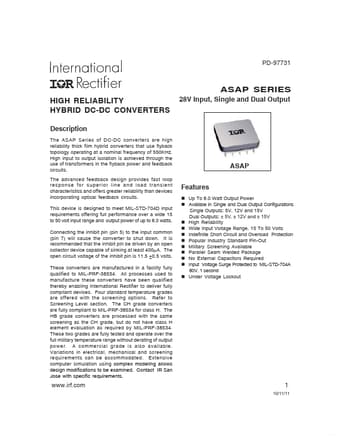

ASAP Datasheet Preview — Preview of ASAP PDF

Datasheet Details

Part number	ASAP
Manufacturer	IRF
File Size	151.84 KB
Description	HIGH RELIABILITY HYBRID DC-DC CONVERTERS
Datasheet	ASAP-IRF.pdf

ASAP Product details

Description

The ASAP Series of DC-DC converters are high reliability thick film hybrid converters that use flyback topology operating at a nominal frequency of 550KHz.

Features

n Up To 6.0 Watt Output Power n Availabe in Single and Dual Output Configurations Single Outputs: 5V, 12V and 15V Dual Outputs: ± 5V, ± 12V and ± 15V n High Reliability n Wide Input Voltage Range, 15 To 50 Volts n Indefinite Short Circuit and Overload Protection n Popular Industry Standard Pin-Out n Military Screening Available n Parallel Seam Welded Package n No External Capacitors Required n Input Voltage Surge Protected to MIL-STD-704A 80V, 1 second n Under Voltage Lockout www. irf. com 1 10/.
