ASAP2805S

HIGH RELIABILITY HYBRID DC-DC CONVERTERS

ASAP2805S Features

* n Up To 6.0 Watt Output Power n Availabe in Single and Dual Output Configurations Single Outputs: 5V, 12V and 15V Dual Outputs: ± 5V, ± 12V and ± 15V n High Reliability n Wide Input Voltage Range, 15 To 50 Volts n Indefinite Short Circuit and Overload Protection n Popular Industry Standard Pin-Out n

ASAP2805S General Description

The ASAP Series of DC-DC converters are high reliability thick film hybrid converters that use flyback topology operating at a nominal frequency of 550KHz. High input to output isolation is achieved through the use of transformers in the flyback power and feedback circuits. The advanced feedback des.

ASAP2805S Datasheet (151.84 KB)

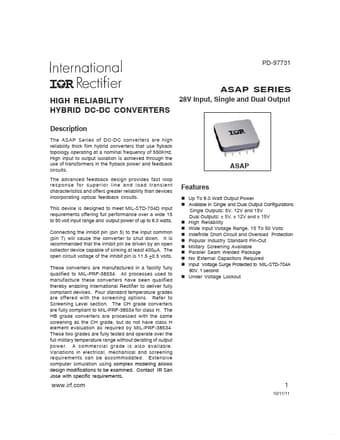

Preview of ASAP2805S PDF

Datasheet Details

Part number:

ASAP2805S

Manufacturer:

IRF

File Size:

151.84 KB

Description:

High reliability hybrid dc-dc converters.
