ASAP2815S, ASAP Datasheet - IRF

ASAP2815S - HIGH RELIABILITY HYBRID DC-DC CONVERTERS

The ASAP Series of DC-DC converters are high reliability thick film hybrid converters that use flyback topology operating at a nominal frequency of 550KHz.

High input to output isolation is achieved through the use of transformers in the flyback power and feedback circuits.

The advanced feedback des

ASAP2815S Features

* n Up To 6.0 Watt Output Power n Availabe in Single and Dual Output Configurations Single Outputs: 5V, 12V and 15V Dual Outputs: ± 5V, ± 12V and ± 15V n High Reliability n Wide Input Voltage Range, 15 To 50 Volts n Indefinite Short Circuit and Overload Protection n Popular Industry Standard Pin-Out n

ASAP-IRF.pdf

This datasheet PDF includes multiple part numbers: ASAP2815S, ASAP. Please refer to the document for exact specifications by model.

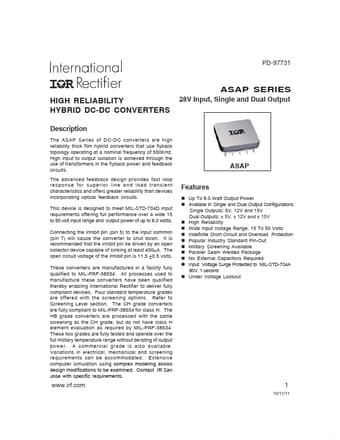

ASAP2815S Datasheet Preview Page 2 ASAP2815S Datasheet Preview Page 3

Datasheet Details

Part number:

ASAP2815S, ASAP

Manufacturer:

IRF

File Size:

151.84 KB

Description:

High reliability hybrid dc-dc converters.

Note:

This datasheet PDF includes multiple part numbers: ASAP2815S, ASAP.
Please refer to the document for exact specifications by model.
