ASA2805S

HYBRID-HIGH RELIABILITY DC/DC CONVERTER

IRF

ASA2805S Features

* Up To 5.0W Output Power 5V, 12V,15V Outputs High Reliability Wide Input Voltage Range -16V To 40V Indefinite Short Circuit and Overload Protection Popular Industry Standard Pin-Out Military Screening Available Parallel Seam Welded Package No External Capacitors Required Input Voltage Surge Protected

ASA2805S General Description

The ASA28XXS Series of DC/DC converters are high reliability thick film hybrid converters that use flyback topology operating at a nominal frequency of 550KHz. High input to output isolation is achieved through the use of transformers in the flyback power and feedback circuits. The advanced feedback.

ASA2805S Datasheet (119.40 KB)

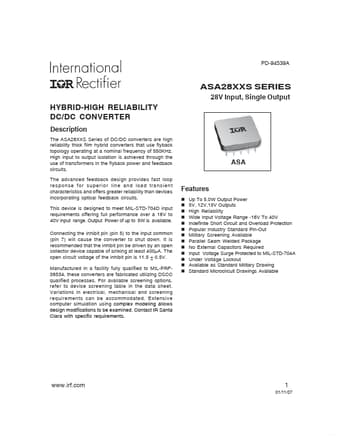

ASA2805S Datasheet Preview — Preview of ASA2805S PDF

Datasheet Details

Part number:

ASA2805S

Manufacturer:

IRF

File Size:

119.40 KB

Description:

Hybrid-high reliability dc/dc converter.
