ASA2805D, ASA28xxD - HYBRID-HIGH RELIABILITYDC/DC CONVERTER

International Rectifier

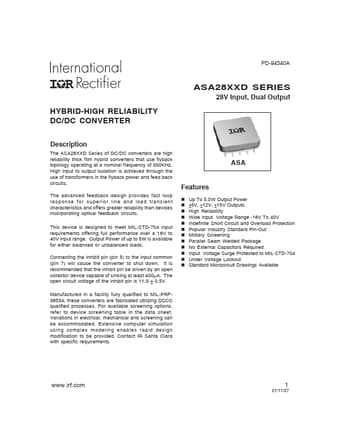

ASA2805D Datasheet Preview — This datasheet PDF includes multiple part numbers: ASA2805D, ASA28xxD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ASA2805D, ASA28xxD
Manufacturer	International Rectifier ↗
File Size	164.11 KB
Description	HYBRID-HIGH RELIABILITYDC/DC CONVERTER
Datasheet	ASA28xxD_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: ASA2805D, ASA28xxD. Please refer to the document for exact specifications by model.

ASA2805D Product details

Description

The ASA28XXD Series of DC/DC converters are high reliability thick film hybrid converters that use flyback topology operating at a nominal frequency of 550KHz.

Features

Up To 5.0W Output Power ±5V, ±12V, ±15V Outputs High Reliability Wide Input Voltage Range -16V To 40V Indefinite Short Circuit and Overload Protection Popular Industry Standard Pin-Out Military Screening Parallel Seam Welded Package No External Capacitors Required Input Voltage Surge Protected to MIL-STD-704 Under Voltage Lockout Standard Microcircuit Drawings Available www. irf. com 01/11/07 1 Datasheet pdf - http://www. DataSheet4U. co. kr/ ASA28XXD Series Specifications Absolute Maximum Ratin.
