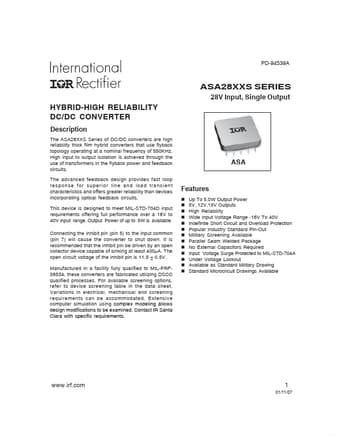

ASA2815S HYBRID-HIGH RELIABILITY DC/DC CONVERTER

The ASA28XXS Series of DC/DC converters are high reliability thick film hybrid converters that use flyback topology operating at a nominal frequency of 550KHz. High input to output isolation is achieved through the use of transformers in the flyback power and feedback circuits. The advanced feedback.

ASA2815S Features

* Up To 5.0W Output Power 5V, 12V,15V Outputs High Reliability Wide Input Voltage Range -16V To 40V Indefinite Short Circuit and Overload Protection Popular Industry Standard Pin-Out Military Screening Available Parallel Seam Welded Package No External Capacitors Required Input Voltage Surge Protected

ASA28XXS-IRF.pdf

This datasheet PDF includes multiple part numbers: ASA2815S, ASA28XXS. Please refer to the document for exact specifications by model.
ASA2815S Datasheet Preview Page 2 ASA2815S Datasheet Preview Page 3

Datasheet Details

Part number:

ASA2815S, ASA28XXS

Manufacturer:

IRF

File Size:

119.40 KB

Description:

Hybrid-high reliability dc/dc converter.

Note:

This datasheet PDF includes multiple part numbers: ASA2815S, ASA28XXS.
Please refer to the document for exact specifications by model.
