ASA2815D HYBRID-HIGH RELIABILITYDC/DC CONVERTER

The ASA28XXD Series of DC/DC converters are high reliability thick film hybrid converters that use flyback topology operating at a nominal frequency of 550KHz. High input to output isolation is achieved through the use of transformers in the flyback power and feed back circuits. The advanced feedbac.

ASA2815D Features

* Up To 5.0W Output Power ±5V, ±12V, ±15V Outputs High Reliability Wide Input Voltage Range -16V To 40V Indefinite Short Circuit and Overload Protection Popular Industry Standard Pin-Out Military Screening Parallel Seam Welded Package No External Capacitors Required Input Voltage Surge Protected to MI

ASA28xxD_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: ASA2815D, ASA28xxD. Please refer to the document for exact specifications by model.

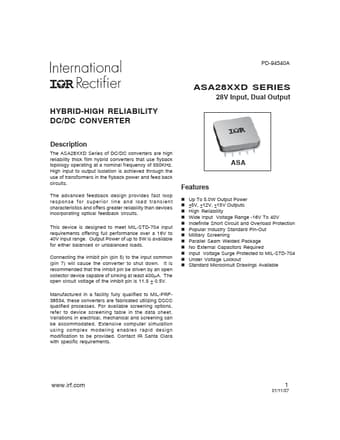

ASA2815D Datasheet Preview Page 2 ASA2815D Datasheet Preview Page 3
