ASA2812D, ASA28xxD Datasheet - International Rectifier

ASA2812D HYBRID-HIGH RELIABILITYDC/DC CONVERTER

The ASA28XXD Series of DC/DC converters are high reliability thick film hybrid converters that use flyback topology operating at a nominal frequency of 550KHz. High input to output isolation is achieved through the use of transformers in the flyback power and feed back circuits. The advanced feedbac.

ASA2812D Features

* Up To 5.0W Output Power ±5V, ±12V, ±15V Outputs High Reliability Wide Input Voltage Range -16V To 40V Indefinite Short Circuit and Overload Protection Popular Industry Standard Pin-Out Military Screening Parallel Seam Welded Package No External Capacitors Required Input Voltage Surge Protected to MI

ASA28xxD_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: ASA2812D, ASA28xxD. Please refer to the document for exact specifications by model.

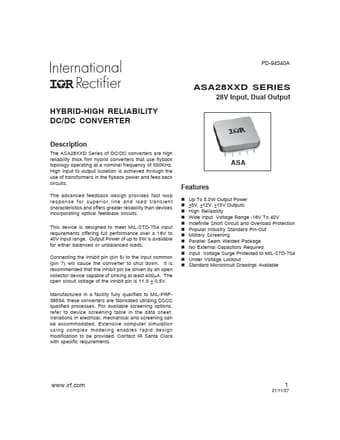

ASA2812D Datasheet Preview Page 2 ASA2812D Datasheet Preview Page 3

Datasheet Details

Part number:

ASA2812D, ASA28xxD

Manufacturer:

International Rectifier

File Size:

164.11 KB

Description:

Hybrid-high reliabilitydc/dc converter.

Note:

This datasheet PDF includes multiple part numbers: ASA2812D, ASA28xxD.
Please refer to the document for exact specifications by model.
