IRG4BC20FD-S - INSULATED GATE BIPOLAR TRANSISTOR

Features

  • Fast: Optimized for medium operating frequencies ( 1-5 kHz in hard switching, >20 kHz in resonant mode).
  • Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3.
  • IGBT co-packaged with.

📥 Download Datasheet

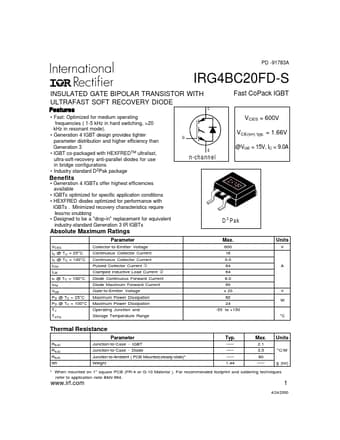

Datasheet preview – IRG4BC20FD-S
