IRG4BC20K - INSULATED GATE BIPOLAR TRANSISTOR

Features

  • High short circuit rating optimized for motor control, tsc =10µs, @360V VCE (start), TJ = 125°C, VGE = 15V.
  • Combines low conduction losses with high switching speed.
  • Latest generation design provides tighter parameter distribution and higher efficiency than previous generations C Short Circuit Rated UltraFast IGBT VCES = 600V G E VCE(on) typ. = 2.27V @VGE = 15V, IC = 9.0A n-channel Benefits.
  • As a Freewheeling Diode we recommend our.

📥 Download Datasheet

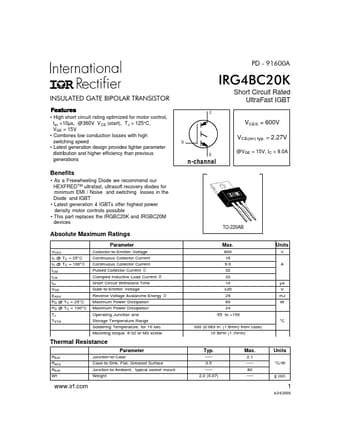

Datasheet preview – IRG4BC20K

Datasheet Details

Part number IRG4BC20K
Manufacturer IRF
File Size 138.38 KB
Description INSULATED GATE BIPOLAR TRANSISTOR
Datasheet download datasheet IRG4BC20K Datasheet
