IRG4BC20FPBF Datasheet - International Rectifier

IRG4BC20FPBF Fast Speed IGBT

IRG4BC20FPBF Features

* • Fast: Optimized for medium operating frequencies ( 1-5 kHz in hard switching, >20 kHz in resonant mode). • Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3 • Industry standard TO-220AB package • Lead-Free C Fast Speed IGBT VCES = 600V G E

IRG4BC20FPBF-InternationalRectifier.pdf

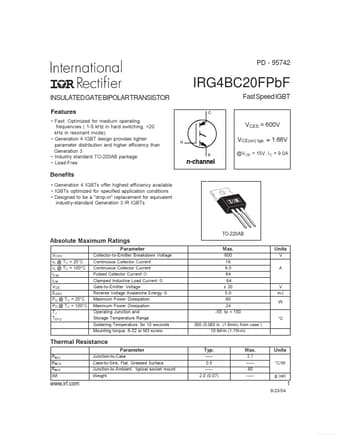

Preview of IRG4BC20FPBF PDF
IRG4BC20FPBF Datasheet Preview Page 2 IRG4BC20FPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRG4BC20FPBF

Manufacturer:

International Rectifier

File Size:

223.07 KB

Description:

Fast speed igbt.
