IS24C128-2

2-WIRE SERIAL CMOS EEPROM

IS24C128-2 Features

* Low Power CMOS Technology

* Standby Current less than 10 µA (5.5V)

* Read Current (typical) less than 1 mA (5.5V)

* Write Current (typical) less than 3 mA (5.5V)

* Low Voltage Operation

* IS24C256-2 & IS24C128-2: Vcc = 1.8V to 5.5V

* IS24C256

IS24C128-2 General Description

The IS24C128-2 is a 1.8V (1.8V-5.5V) 128K-bit (16384 x 8) Electrically Erasable PROM, IS24C128-3 is a 2.5V (2.5V5.5V) 128K-bit (16384 x 8) Electrically Erasable PROM, IS24C256-2 is a 1.8V (1.8V-5.5V) 256K-bit (32768 x 8) Electrically Erasable PROM and the IS24C256-3 is a 2.5V (2.5V-5.5V) 256K-bit (3.

IS24C128-2 Datasheet (49.18 KB)

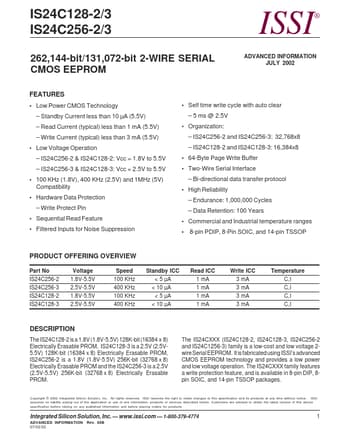

Preview of IS24C128-2 PDF

Datasheet Details

Part number:

IS24C128-2

Manufacturer:

ISSI

File Size:

49.18 KB

Description:

2-wire serial cmos eeprom.
