IS24C128A

2-WIRE SERIAL CMOS EEPROM

ISSI

IS24C128A Features

* Two-Wire Serial Interface, I2CTM compatible

* Bi-directional data transfer protocol

* Wide Voltage Operation

* Vcc = 1.8V to 5.5V

* 400 KHz (2.5V) and 1 MHz (5.0V) compatibility

* Low Power CMOS Technology

* Active Current less than 3 mA (2.5V)

IS24C128A General Description

The IS24C128A/256A is an electrically erasable PROM device that uses the standard 2-wire interface for communications. The IS24C128A is 128K-bit (16Kx8) and the IS24C256A is 256K-bit (32Kx8). These EEPROM are offered in a wide operating voltage range of 1.8V to 5.5V to be compatible with most applic.

IS24C128A Datasheet (344.06 KB)

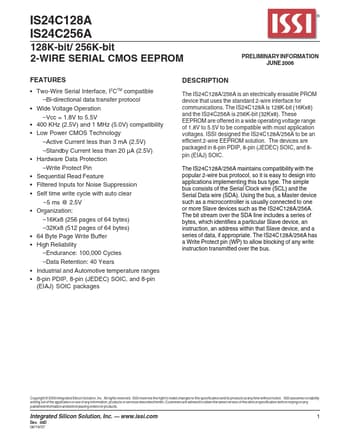

IS24C128A Datasheet Preview — Preview of IS24C128A PDF

Datasheet Details

Part number:

IS24C128A

Manufacturer:

ISSI

File Size:

344.06 KB

Description:

2-wire serial cmos eeprom.
