IS25LD020 512Kbit / 1Mbit / 2Mbit Single Operating Voltage Serial Flash Memory

The IS25LD512/010/020 are 512Kbit/ 1Mbit / 2Mbit Serial Peripheral Interface (SPI) Flash memories, providing single- or dual-output. The devices are designed to support a 33 MHz clock rate in normal read mode, and 100 MHz in fast read, the fastest in the industry. The devices use a single low voltag.

IS25LD020 Features

* Single Power Supply Operation - Low voltage range: 2.3 V

* 3.6 V

* Memory Organization - IS25LD512: 64K x 8 (512 Kbit) - IS25LD010: 128K x 8 (1 Mbit) - IS25LD020: 256K x 8 (2 Mbit)

* Cost Effective Sector/Block Architecture - 512Kb : Uniform 4KByte sectors / Two uni

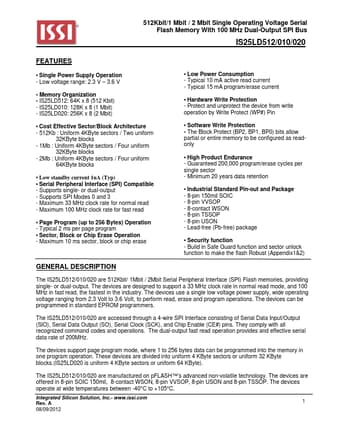

IS25LD512-ISSI.pdf

IS25LD020 Datasheet Preview — This datasheet PDF includes multiple part numbers: IS25LD020, IS25LD512. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS25LD020, IS25LD512

Manufacturer:

ISSI

File Size:

600.92 KB

Description:

512kbit / 1mbit / 2mbit single operating voltage serial flash memory.

Note:

This datasheet PDF includes multiple part numbers: IS25LD020, IS25LD512.
Please refer to the document for exact specifications by model.
