IS25LD040

4Mbit Single Operating Voltage Serial Flash Memory

IS25LD040 Features

* Single Power Supply Operation - Low voltage range: 2.3 V - 3.6 V

* Memory Organization - IS25LD040: 512K x 8 (4 Mbit)

* Cost Effective Sector/Block Architecture - 4Mb : Uniform 4KByte sectors / Eight uniform 64KByte blocks

* Low standby current 1uA (Typ)

* S

IS25LD040 General Description

The IS25LD040 are 4Mbit Serial Peripheral Interface (SPI) Flash memories, providing single- or dual-output. The devices are designed to support a 33 MHz clock rate in normal read mode, and 100 MHz in fast read, the fastest in the industry. The devices use a single low voltage power supply, wide oper.

IS25LD040 Datasheet (430.55 KB)

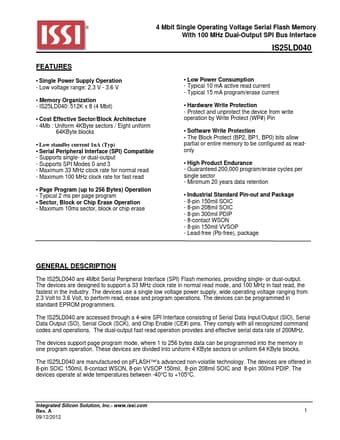

Preview of IS25LD040 PDF

Datasheet Details

Part number:

IS25LD040

Manufacturer:

ISSI

File Size:

430.55 KB

Description:

4mbit single operating voltage serial flash memory.
