IS25LD512 512Kbit / 1Mbit / 2Mbit Single Operating Voltage Serial Flash Memory

📥 Download Datasheet  Datasheet Preview Page 1

Description

512Kbit/1 Mbit / 2 Mbit Single Operating Voltage Serial Flash Memory With 100 MHz Dual-Output SPI Bus IS25LD512/010/020 .
The IS25LD512/010/020 are 512Kbit/ 1Mbit / 2Mbit Serial Peripheral Interface (SPI) Flash memories, providing single- or dual-output.

📥 Download Datasheet

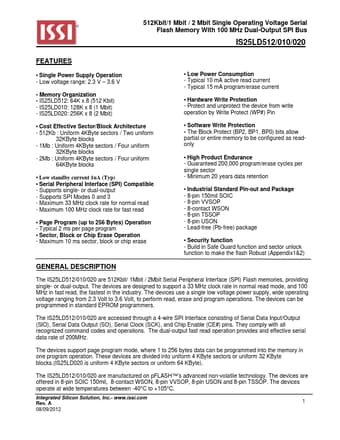

Preview of IS25LD512 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IS25LD512
Manufacturer
ISSI
File Size
600.92 KB
Datasheet
IS25LD512-ISSI.pdf
Description
512Kbit / 1Mbit / 2Mbit Single Operating Voltage Serial Flash Memory

Features

* Single Power Supply Operation - Low voltage range: 2.3 V
* 3.6 V
* Memory Organization - IS25LD512: 64K x 8 (512 Kbit) - IS25LD010: 128K x 8 (1 Mbit) - IS25LD020: 256K x 8 (2 Mbit)
* Cost Effective Sector/Block Architecture - 512Kb : Uniform 4KByte sectors / Two uni
