IS42SM16160E

4M x 16Bits x 4Banks Mobile Synchronous DRAM

IS42SM16160E Features

* JEDEC standard 3.3V, 2.5V, 1.8V power supply.

* Auto refresh and self refresh.

* All pins are compatible with LVCMOS interface.

* 8K refresh cycle / 64ms.

* Programmable Burst Length and Burst Type. - 1, 2, 4, 8 or Full Page for Sequential Burst. - 4 or 8 for In

IS42SM16160E General Description

These IS42/45SM/RM/VM16160E are mobile 268,435,456 bits CMOS Synchronous DRAM organized as 4 banks of 4,194,304 words x 16 bits. These products are offering fully synchronous operation and are referenced to a positive edge of the clock. All inputs and outputs are synchronized with the rising edge of.

IS42SM16160E Datasheet (554.56 KB)

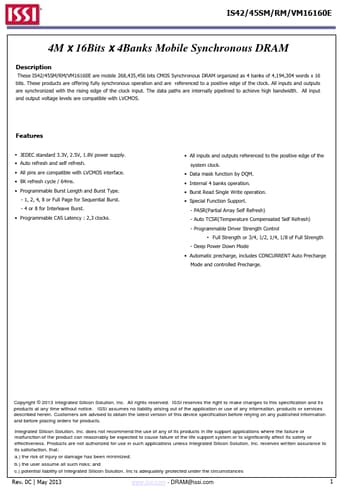

Preview of IS42SM16160E PDF

Datasheet Details

Part number:

IS42SM16160E

Manufacturer:

ISSI

File Size:

554.56 KB

Description:

4m x 16bits x 4banks mobile synchronous dram.
