IS42SM16400G

1M x 16Bits x 4Banks Low Power Synchronous DRAM

IS42SM16400G Features

* JEDEC standard 3.3V power supply.

* Auto refresh and self refresh.

* All pins are compatible with LVCMOS interface.

* 4K refresh cycle y / 64ms.

* Programmable Burst Length and Burst Type. - 1, 2, 4, 8 or Full Page for Sequential Burst. - 4 or 8 for Interleave B

IS42SM16400G General Description

These IS42SM16400G are Low Power 67,108,864 bits CMOS Synchronous DRAM organized as 4 banks of 1,048,576 words x 16 bits. These products are offering fully synchronous operation and are referenced to a positive edge of the clock. All inputs and outputs are synchronized with the rising edge of the cl.

IS42SM16400G Datasheet (280.37 KB)

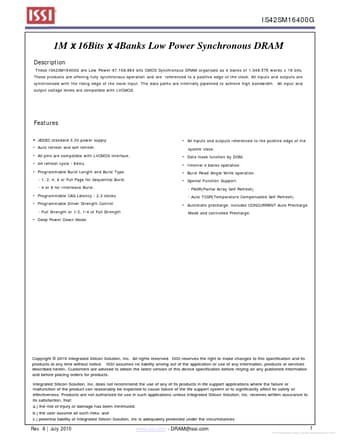

Preview of IS42SM16400G PDF

Datasheet Details

Part number:

IS42SM16400G

Manufacturer:

ISSI

File Size:

280.37 KB

Description:

1m x 16bits x 4banks low power synchronous dram.
