IS42SM16800E

128Mb Mobile Synchronous DRAM

IS42SM16800E Features

* Fully synchronous; all signals referenced to a positive clock edge

* Internal bank for hiding row access and precharge

* Programmable CAS latency: 2, 3

* Programmable Burst Length: 1, 2, 4, 8, and Full Page

* Programmable Burst Sequence:

* Sequ

IS42SM16800E General Description

ISSI's 128Mb Mobile Synchronous DRAM achieves highspeed data transfer using pipeline architecture. All input and output signals refer to the rising edge of the clock input. Both write and read accesses to the SDRAM are burst oriented. The 128Mb Mobile Synchronous DRAM is designed to minimize current.

IS42SM16800E Datasheet (402.44 KB)

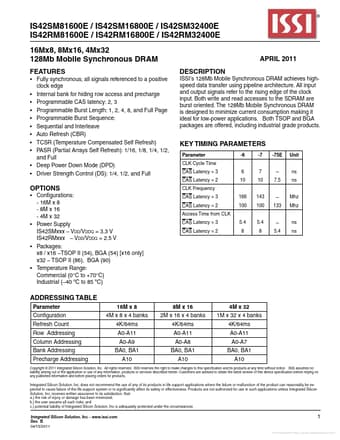

Preview of IS42SM16800E PDF

Datasheet Details

Part number:

IS42SM16800E

Manufacturer:

ISSI

File Size:

402.44 KB

Description:

128mb mobile synchronous dram.
