IS42SM16200C

1M x 16Bits x 2Banks Low Power Synchronous DRAM

IS42SM16200C Features

* JEDEC standard 3.3V, 2.5V, 1.8V power supply.

* Auto refresh and self refresh.

* All pins are compatible with LVCMOS interface.

* 4K refresh cycle / 64ms.

* Programmable Burst Length and Burst Type. - 1, 2, 4, 8 or Full Page for Sequential Burst. - 4 or 8 for In

IS42SM16200C General Description

These IS42SM/RM/VM16200C are low power 33,554,432 bits CMOS Synchronous DRAM organized as 2 banks of 1,048,576 words x 16 bits. These products are offering fully synchronous operation and are referenced to a positive edge of the clock. All inputs and outputs are synchronized with the rising edge of .

IS42SM16200C Datasheet (1.75 MB)

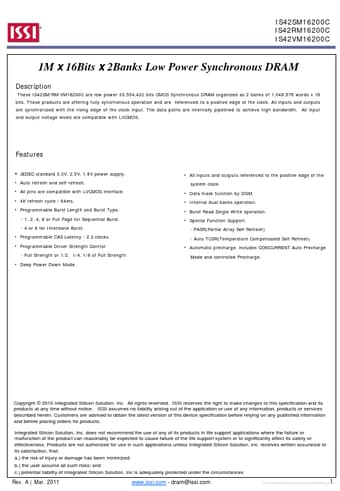

Preview of IS42SM16200C PDF

Datasheet Details

Part number:

IS42SM16200C

Manufacturer:

ISSI

File Size:

1.75 MB

Description:

1m x 16bits x 2banks low power synchronous dram.
