IS43LD32160A, IS46LD16320A - 512Mb Mobile LPDDR2 S4 SDRAM

ISSI

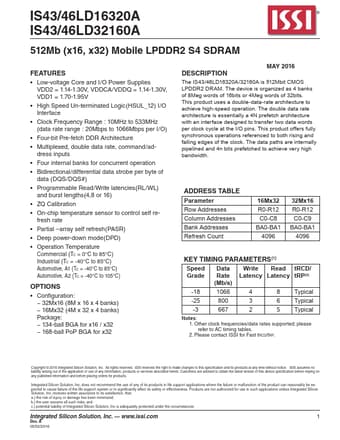

IS43LD32160A Datasheet Preview — This datasheet PDF includes multiple part numbers: IS43LD32160A, IS46LD16320A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS43LD32160A, IS46LD16320A
Manufacturer	ISSI
File Size	4.50 MB
Description	512Mb Mobile LPDDR2 S4 SDRAM
Datasheet	IS46LD16320A-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS43LD32160A, IS46LD16320A. Please refer to the document for exact specifications by model.

IS43LD32160A Product details

Description

MAY 2016 The IS43/46LD16320A/32160A is 512Mbit CMOS LPDDR2 DRAM.The device is organized as 4 banks of 8Meg words of 16bits or 4Meg words of 32bits.This product uses a double-data-rate architecture to achieve high-speed operation.The double data rate architecture is essentially a 4N prefetch architecture with an interface designed to transfer two data words per clock cycle at the I/O pins.This product offers fully synchronous operations referenced to both rising and falling edges of the clo

Features

Low-voltage Core and I/O Power Supplies VDD2 = 1.14-1.30V, VDDCA/VDDQ = 1.14-1.30V, VDD1 = 1.70-1.95V.
High Speed Un-terminated Logic(HSUL_12) I/O Interface.
Clock Frequency Range : 10MHz to 533MHz (data rate range : 20Mbps to 1066Mbps per I/O).
Four-bit Pre-fetch DDR Architecture.
Multiplexed, double data rate, command/address inputs.
Four internal banks for concurrent operation.
Bidirectional/differential data strobe per by.
