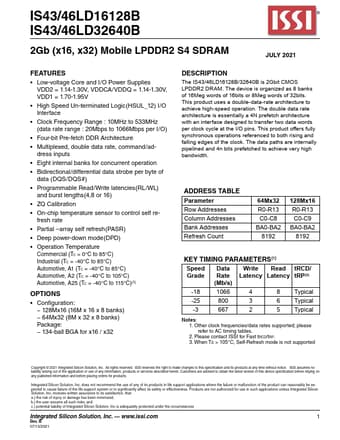

IS43LD32640B, IS46LD16128B - 2Gb Mobile LPDDR2 S4 SDRAM

ISSI

Datasheet Details

Part number	IS43LD32640B, IS46LD16128B
Manufacturer	ISSI
File Size	3.53 MB
Description	2Gb Mobile LPDDR2 S4 SDRAM
Datasheet	IS46LD16128B-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS43LD32640B, IS46LD16128B. Please refer to the document for exact specifications by model.

The IS43/46LD16128B/32640B is 2Gbit CMOS LPDDR2 DRAM.

Low-voltage Core and I/O Power Supplies VDD2 = 1.14-1.30V, VDDCA/VDDQ = 1.14-1.30V, VDD1 = 1.70-1.95V.
High Speed Un-terminated Logic(HSUL_12) I/O Interface.
Clock Frequency Range : 10MHz to 533MHz (data rate range : 20Mbps to 1066Mbps per I/O).
Four-bit Pre-fetch DDR Architecture.
Multiplexed, double data rate, command/address inputs.
Eight internal banks for concurrent operation.
Bidirectional/differential data strobe per byte of.
