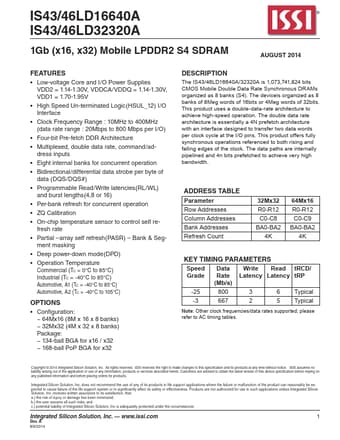

IS43LD32320A, IS46LD16640A - 1Gb Mobile LPDDR2 S4 SDRAM

ISSI

Datasheet Details

Part number	IS43LD32320A, IS46LD16640A
Manufacturer	ISSI
File Size	4.46 MB
Description	1Gb Mobile LPDDR2 S4 SDRAM
Datasheet	IS46LD16640A-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS43LD32320A, IS46LD16640A. Please refer to the document for exact specifications by model.

The IS43/46LD16640A/32320A is 1,073,741,824 bits CMOS Mobile Double Data Rate Synchronous DRAMs organized as 8 banks (S4).

Low-voltage Core and I/O Power Supplies VDD2 = 1.14-1.30V, VDDCA/VDDQ = 1.14-1.30V, VDD1 = 1.70-1.95V.
High Speed Un-terminated Logic(HSUL_12) I/O Interface.
Clock Frequency Range : 10MHz to 400MHz (data rate range : 20Mbps to 800 Mbps per I/O).
Four-bit Pre-fetch DDR Architecture.
Multiplexed, double data rate, command/address inputs.
Eight internal banks for concurrent operation.
Bidirectional/differential data strobe per b.
