IS45SM16200D, IS42SM16200D 1M x 16Bits x 2Banks Low Power Synchronous DRAM

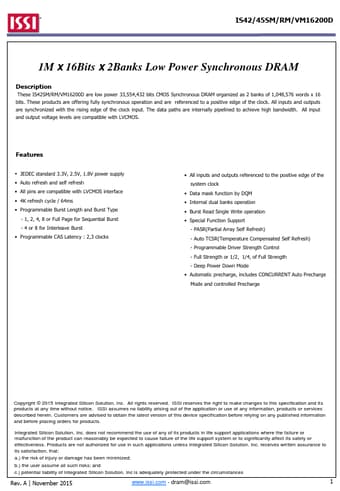

📥 Download Datasheet Datasheet Preview Page 1

Description

IS42/45SM/RM/VM16200D 1M x 16Bits x 2Banks Low Power Synchronous DRAM .
These IS42SM/RM/VM16200D are low power 33,554,432 bits CMOS Synchronous DRAM organized as 2 banks of 1,048,576 words x 16 bits.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS45SM16200D, IS42SM16200D. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IS45SM16200D, IS42SM16200D
Manufacturer
ISSI
File Size
517.44 KB
Datasheet
IS42SM16200D-ISSI.pdf
Description
1M x 16Bits x 2Banks Low Power Synchronous DRAM
Note
This datasheet PDF includes multiple part numbers: IS45SM16200D, IS42SM16200D.
Please refer to the document for exact specifications by model.

Features

* JEDEC standard 3.3V, 2.5V, 1.8V power supply
* Auto refresh and self refresh
* All pins are compatible with LVCMOS interface
* 4K refresh cycle / 64ms
* Programmable Burst Length and Burst Type - 1, 2, 4, 8 or Full Page for Sequential Burst - 4 or 8 for Interlea
