IS46LR16200D - 1M x 16Bits x 2Banks Mobile DDR SDRAM

ISSI

Datasheet Details

Part number	IS46LR16200D
Manufacturer	ISSI
File Size	1.72 MB
Description	1M x 16Bits x 2Banks Mobile DDR SDRAM
Datasheet	IS46LR16200D-ISSI.pdf

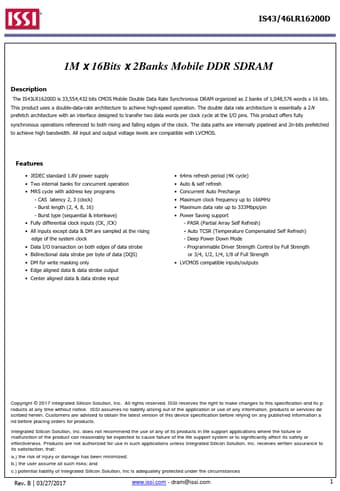

The IS43LR16200D is 33,554,432 bits CMOS Mobile Double Data Rate Synchronous DRAM organized as 2 banks of 1,048,576 words x 16 bits.

JEDEC standard 1.8V power supply.
Two internal banks for concurrent operation.
MRS cycle with address key programs - CAS latency 2, 3 (clock) - Burst length (2, 4, 8, 16) - Burst type (sequential & interleave).
Fully differential clock inputs (CK, /CK).
All inputs except data & DM are sampled at the rising edge of the system clock.
Data I/O transaction on both edges of data strobe.
Bidirectional data strobe per byte of data (DQS).
