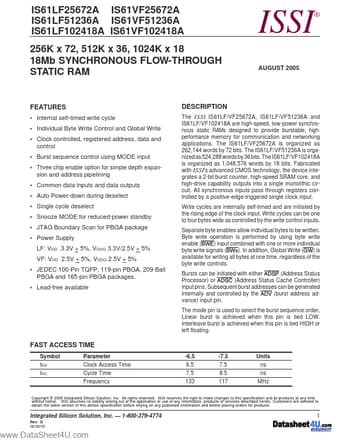

Description
The ISSI IS61LF/VF25672A, IS61LF/VF51236A and
IS61LF/VF102418A are high-speed, low-power synchronous static RAMs designed to provide burstable, highperformance memory for communication and networking applications.The IS61LF/VF25672A is organized as 262,144 words by 72 bits.The IS61LF/VF51236A is organized as 524,288 words by 36 bits.The IS61LF/VF102418A is organized as 1,048,576 words by 18 bits.Fabricated with ISSI's advanced CMOS technology, the device integrates a 2-bit burst counter, hig
Features
- Internal self-timed write cycle.
- Individual Byte Write Control and Global Write.
- Clock controlled, registered address, data and control.
- Burst sequence control using MODE input.
- Three chip enable option for simple depth expansion and address pipelining.
- Common data inputs and data outputs.
- Auto Power-down during deselect.
- Single cycle deselect.
- Snooze MODE for reduced-power standby.
- JTAG Boundary Scan for.
