IS61NVF102436A, IS61NLF102436A - 36Mb STATE BUS SRAM

ISSI

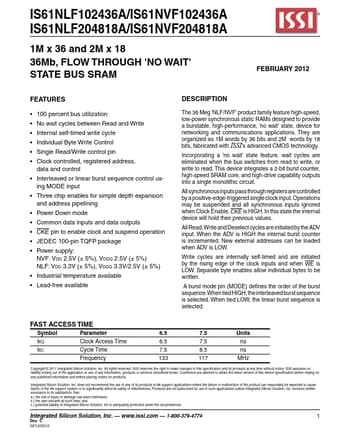

IS61NVF102436A Datasheet Preview — This datasheet PDF includes multiple part numbers: IS61NVF102436A, IS61NLF102436A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS61NVF102436A, IS61NLF102436A
Manufacturer	ISSI
File Size	287.24 KB
Description	36Mb STATE BUS SRAM
Datasheet	IS61NLF102436A-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS61NVF102436A, IS61NLF102436A. Please refer to the document for exact specifications by model.

IS61NVF102436A Product details

Description

The 36 Meg 'NLF/NVF' product family feature high-speed, low-power synchronous static RAMs designed to provide a burstable, high-performance, 'no wait' state, device for networking and communications applications.

Features

100 percent bus utilization.
No wait cycles between Read and Write.
Internal self-timed write cycle.
Individual Byte Write Control.
Single Read/Write control pin.
Clock controlled, registered address, data and control.
Interleaved or linear burst sequence control us- ing MODE input.
Three chip enables for simple depth expansion and address pipelining.
Power Down mode.
Common data inputs and data outputs.
