IS61NVP204836B, IS61NLP204836B - PIPELINE (NO WAIT) STATE BUS SRAM

Integrated Silicon Solution

📥 Download Datasheet

IS61NVP204836B Datasheet Preview — This datasheet PDF includes multiple part numbers: IS61NVP204836B, IS61NLP204836B. Please refer to the document for exact specifications by model.

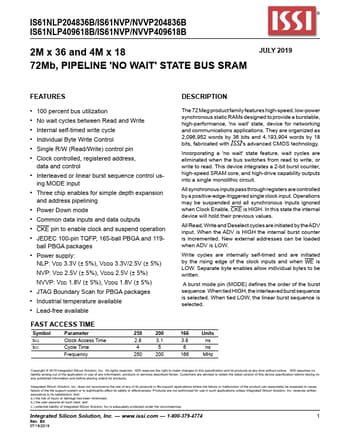

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IS61NVP204836B, IS61NLP204836B
Manufacturer	Integrated Silicon Solution
File Size	1.36 MB
Description	PIPELINE (NO WAIT) STATE BUS SRAM
Datasheet	IS61NLP204836B-IntegratedSiliconSolution.pdf
Note	This datasheet PDF includes multiple part numbers: IS61NVP204836B, IS61NLP204836B. Please refer to the document for exact specifications by model.

IS61NVP204836B Product details

Description

The 72 Meg product family

Features

100 percent bus utilization.
No wait cycles between Read and Write.
Internal self-timed write cycle.
Individual Byte Write Control.
Single R/W (Read/Write) control pin.
Clock controlled, registered address, data and control.
Interleaved or linear burst sequence control us- ing MODE input.
Three chip enables for simple depth expansion and address pipelining.
Power Down mode.
Common data inputs and data out.
