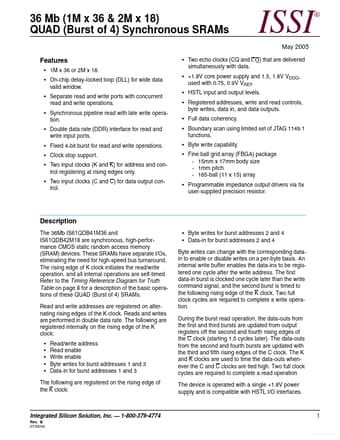

IS61QDB42M18, IS61QDB41M36 - 36 Mb (1M x 36 & 2M x 18) QUAD (Burst of 4) Synchronous SRAMs

ISSI

Datasheet Details

Part number	IS61QDB42M18, IS61QDB41M36
Manufacturer	ISSI
File Size	476.75 KB
Description	36 Mb (1M x 36 & 2M x 18) QUAD (Burst of 4) Synchronous SRAMs
Datasheet	IS61QDB41M36-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS61QDB42M18, IS61QDB41M36. Please refer to the document for exact specifications by model.

The 36Mb IS61QDB41M36 and IS61QDB42M18 are synchronous, high-performance CMOS static random access memory (SRAM) devices.

1M x 36 or 2M x 18.
On-chip delay-locked loop (DLL) for wide data valid window.
Separate read and write ports with concurrent read and write operations.
Synchronous pipeline read with late write operation.
Double data rate (DDR) interface for read and write input ports.
Fixed 4-bit burst for read and write operations.
Clock stop support.
Two input clocks (K and K) for address and control registering at rising edges o.
