IS61QDB42M36 - QUAD (Burst of 4) Synchronous SRAMs

ISSI

Datasheet Details

Part number	IS61QDB42M36
Manufacturer	ISSI
File Size	640.48 KB
Description	QUAD (Burst of 4) Synchronous SRAMs
Datasheet	IS61QDB42M36-ISSI.pdf

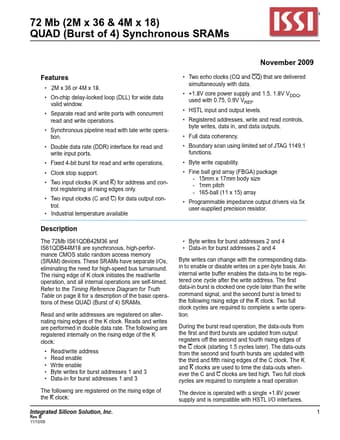

The 72Mb IS61QDB42M36 and IS61QDB44M18 are synchronous, high-performance CMOS static random access memory (SRAM) devices.

2M x 36 or 4M x 18.
On-chip delay-locked loop (DLL) for wide data valid window.
Separate read and write ports with concurrent read and write operations.
Synchronous pipeline read with late write operation.
Double data rate (DDR) interface for read and write input ports.
Fixed 4-bit burst for read and write operations.
Clock stop support.
Two input clocks (K and K) for address and control registering at rising edges o.
