IS61QDP2B21M36A2

36Mb QUADP (Burst 2) Synchronous SRAM

IS61QDP2B21M36A2 Features

* 1Mx36 and 2Mx18 configuration available.

* On-chip Delay-Locked Loop (DLL) for wide data valid window.

* Separate independent read and write ports with concurrent read and write operations.

* Synchronous pipeline read with EARLY write operation.

* Double Data Rate (DDR) interfa

IS61QDP2B21M36A2 General Description

The and are synchronous, high- performance CMOS static random access memory (SRAM) devices. These SRAMs have separate I/Os, eliminating the need for high-speed bus turnaround. The rising edge of K clock initiates the read/write operation, and all internal operations are self-timed. Refer to t.

IS61QDP2B21M36A2 Datasheet (660.37 KB)

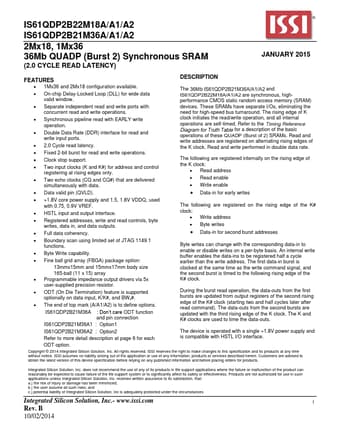

Preview of IS61QDP2B21M36A2 PDF

Datasheet Details

Part number:

IS61QDP2B21M36A2

Manufacturer:

ISSI

File Size:

660.37 KB

Description:

36mb quadp (burst 2) synchronous sram.
