IS62WV25616EALL Datasheet - ISSI

IS62WV25616EALL ULTRA LOW POWER CMOS STATIC RAM

The ISSI IS62/65WV25616EALL/EBLL/ECLL are high-speed, low power, 4M bit static RAMs organized as 256K words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low powe.

IS62WV25616EALL Features

* High-speed access time: 35ns, 45ns, 55ns

* CMOS low power operation

* Operating Current: 22 mA (max) at 85°C

* CMOS Standby Current: 3.7uA (typ) at 25°C

* TTL compatible interface levels

* Single power supply

* 1.65V-2.2V VDD (IS62/65WV25616EALL)

* 2.

IS62WV25616EALL-ISSI.pdf

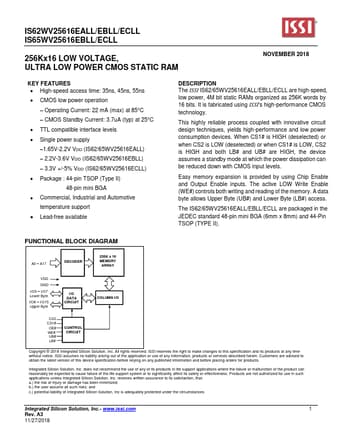

Preview of IS62WV25616EALL PDF
IS62WV25616EALL Datasheet Preview Page 2 IS62WV25616EALL Datasheet Preview Page 3

Datasheet Details

Part number:

IS62WV25616EALL

Manufacturer:

ISSI

File Size:

749.93 KB

Description:

Ultra low power cmos static ram.
