IS62WV2568DALL - ULTRA LOW POWER CMOS STATIC RAM

ISSI

📥 Download Datasheet

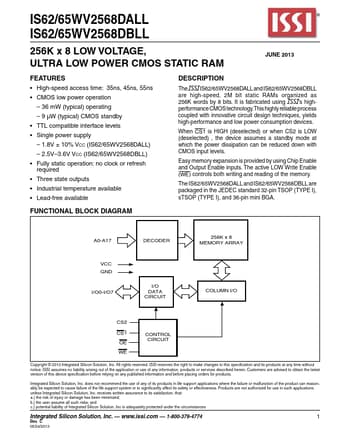

IS62WV2568DALL Datasheet Preview — Preview of IS62WV2568DALL PDF

Datasheet Details

Part number: IS62WV2568DALL
Manufacturer: ISSI
File Size: 350.21 KB
Datasheet: IS62WV2568DALL-ISSI.pdf
Description: ULTRA LOW POWER CMOS STATIC RAM

IS62WV2568DALL Product details

Description

The ISSI IS62/65WV2568DALL and IS62/65WV2568DBLL are high-speed, 2M bit static RAMs organized as 256K words by 8 bits.It is fabricated using ISSI's high- performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices.When CS1 is HIGH (deselected) or when CS2 is low (deselected) , the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Easy

Features

High-speed access time: 35ns, 45ns, 55ns.
CMOS low power operation.
36 mW (typical) operating.
9 µW (typical) CMOS standby.
TTL compatible interface levels.
Single power supply.
1.8V ± 10% Vcc (IS62/65WV2568DALL).
2.5V.
3.6V Vcc (IS62/65WV2568DBLL).
Fully static operation: no clock or refresh required.
Three state outputs.
Industrial temperature available.
Lead-.
