IS62WV2568EBLL ULTRA LOW POWER CMOS STATIC RAM

The ISSI IS62/65WV2568EALL/EBLL are high-speed, 2M bit static RAMs organized as 256K words by 8 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption devic.

IS62WV2568EBLL Features

* High-speed access time: 45ns, 55ns

* CMOS low power operation

* Operating Current: 18 mA (max) at 85°C

* CMOS Standby Current: 5.4uA (typ) at 25°C

* TTL compatible interface levels

* Single power supply

* 1.65V-2.2V VDD (IS62WV2568EALL)

* 2.2V-3.6V VD

IS62WV2568EALL-ISSI.pdf

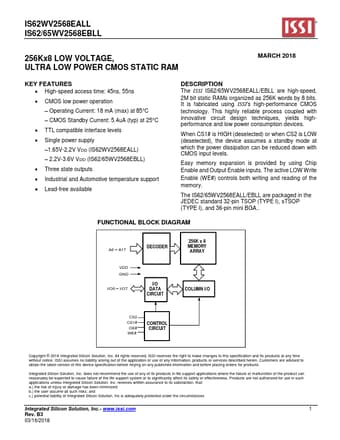

IS62WV2568EBLL Datasheet Preview — This datasheet PDF includes multiple part numbers: IS62WV2568EBLL, IS62WV2568EALL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS62WV2568EBLL, IS62WV2568EALL

Manufacturer:

ISSI

File Size:

805.03 KB

Description:

Ultra low power cmos static ram.

Note:

This datasheet PDF includes multiple part numbers: IS62WV2568EBLL, IS62WV2568EALL.
Please refer to the document for exact specifications by model.
