IS64WV6416BLL - 64K x 16 HIGH-SPEED CMOS STATIC RAM

IS64WV6416BLL Description

IS64WV6416BLL IS61WV6416BLL ® Long-term Support World Class Quality 64K x 16 HIGH-SPEED CMOS STATIC RAM APRIL 2019 .
The ISSI IS61/64WV6416BLL is a high-speed, 1,048,576- bit static RAM organized as 65,536 words by 16 bits.

IS64WV6416BLL Features

* High-speed access time: 12 ns: 3.3V + 10% 15 ns: 2.5V-3.6V
* CMOS low power operation: 50 mW (typical) operating 25 µW (typical) standby
* TTL compatible interface levels
* Fully static operation: no clock or refresh required
* Three state outpu

IS64WV6416BLL Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

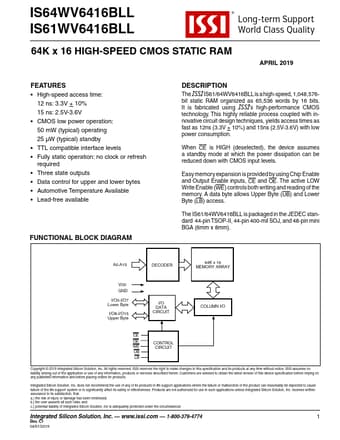

Preview of IS64WV6416BLL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS64WV6416BLL
Manufacturer
ISSI
File Size
336.96 KB
Datasheet
IS64WV6416BLL_ISSI.pdf
Description
64K x 16 HIGH-SPEED CMOS STATIC RAM
