IS66WVC2M16ALL Datasheet - ISSI

IS66WVC2M16ALL - 32Mb Async/Page/Burst CellularRAM

CellularRAMâ„¢ (Trademark of MicronTechnology Inc.) products are high-speed, CMOS pseudo-static random access memory developed for low-power, portable applications. The 32Mb DRAM core device is organized as 2 Meg x 16 bits. This device is a variation of the industry-standard Flash control interface th.
IS66WVC2M16ALL 32Mb Async/Page/Burst CellularRAM 1.5 Overview The IS66WVC2M16ALL is an integrated memory device containing 32Mbit Pseudo Static Random Access Memory using a self-refresh DRAM array organized as 2M words by 16 bits. The device includes several power saving modes : Reduced Array Refresh mode where data is retained in a portion of the array and Temperature Controlled Refresh. Both these modes reduce standby current drain. The device can be operated in a standard asynchronous mode an.

IS66WVC2M16ALL Features

* Single device supports asynchronous , page, and burst operation

* Mixed Mode supports asynchronous write and synchronous read operation

* Dual voltage rails for optional performance

* VDD 1.7V~1.95V, VDDQ 1.7V~1.95V

* Asynchronous mode read access : 70ns Interpage Read access :

IS66WVC2M16ALL-ISSI.pdf

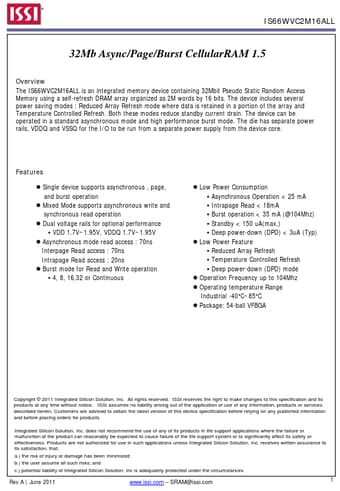

Preview of IS66WVC2M16ALL PDF
IS66WVC2M16ALL Datasheet Preview Page 2 IS66WVC2M16ALL Datasheet Preview Page 3

Datasheet Details

Part number:

IS66WVC2M16ALL

Manufacturer:

ISSI

File Size:

697.00 KB

Description:

32mb async/page/burst cellularram.
