IS66WVE1M16TBLL Datasheet - ISSI

IS66WVE1M16TBLL 16Mb Async/Page PSRAM

IS66/67WVE1M16EALL/EBLL/ECLL IS66/67WVE1M16TALL/TBLL/TCLL 16Mb Async/Page PSRAM NOVEMBER 2015 Overview The IS66/67WVE1M16EALL/BLL/CLL and IS66/67WVE1M16TALL/BLL/CLL are integrated memory device containing 16Mbit Pseudo Static Random Access Memory using a self-refresh DRAM array organized as 1M words by 16 bits. The device includes several power saving modes : Partial Array Refresh mode where data is retained in a portion of the array and Deep Power Down mode. Both these modes reduce standby c.

IS66WVE1M16TBLL Features

* Asynchronous and page mode interface

* Dual voltage rails for optional performance

* ALL: VDD 1.7V~1.95V, VDDQ 1.7V~1.95V

* BLL: VDD 2.7V~3.6V, VDDQ 2.7V~3.6V

* CLL: VDD 1.7V~1.95V, VDDQ 2.7V~3.6V

* Page mode read access

* Interpage Read access : 60ns, 70ns

* Intrap

IS66WVE1M16TBLL Datasheet (502.74 KB)

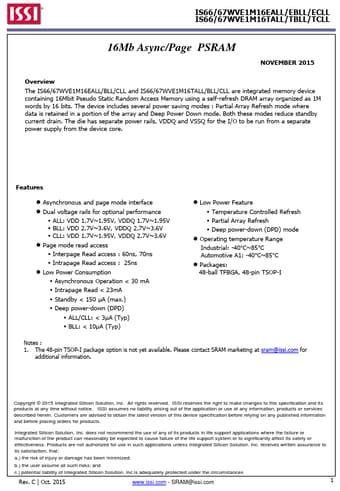

Preview of IS66WVE1M16TBLL PDF
IS66WVE1M16TBLL Datasheet Preview Page 2 IS66WVE1M16TBLL Datasheet Preview Page 3

Datasheet Details

Part number:

IS66WVE1M16TBLL

Manufacturer:

ISSI

File Size:

502.74 KB

Description:

16mb async/page psram.
