IS66WVE51216TCLL, IS66WVE51216EALL Datasheet - ISSI

IS66WVE51216TCLL 8Mb Async/Page PSRAM

PSRAM products are high-speed, CMOS pseudo-static random access memory developed for low-power, portable applications. The 8Mb DRAM core device is organized as 512K x 16 bits. These devices include the industry-standard, asynchronous memory interface found on other low-power SRAM or pseudo-SRAM (PSR.
IS66/IS67WVE51216EALL/EBLL/ECLL IS67/IS67WVE51216TALL/TBLL/TCLL 8Mb Async/Page PSRAM NOVEMBER 2015 Overview The IS66/67WVE51216EALL/BLL/CLL and IS66/67WVE51216TALL/BLL/CLL are integrated memory device containing 8Mbit Pseudo Static Random Access Memory using a self-refresh DRAM array organized as 512K words by 16 bits. The device includes several power saving modes : Partial Array Refresh mode where data is retained in a portion of the array and Deep Power Down mode. Both these modes reduce s.

IS66WVE51216TCLL Features

* Asynchronous and page mode interface

* Dual voltage rails for optional performance

* ALL: VDD 1.7V~1.95V, VDDQ 1.7V~1.95V

* BLL: VDD 2.7V~3.6V, VDDQ 2.7V~3.6V

* CLL: VDD 1.7V~1.95V, VDDQ 2.7V~3.6V

* Page mode read access

* Interpage Read access : 60ns, 70ns

* Intrap

IS66WVE51216EALL-ISSI.pdf

This datasheet PDF includes multiple part numbers: IS66WVE51216TCLL, IS66WVE51216EALL. Please refer to the document for exact specifications by model.

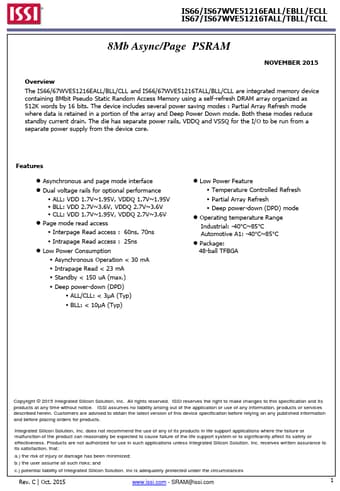

IS66WVE51216TCLL Datasheet Preview Page 2 IS66WVE51216TCLL Datasheet Preview Page 3

Datasheet Details

Part number:

IS66WVE51216TCLL, IS66WVE51216EALL

Manufacturer:

ISSI

File Size:

645.11 KB

Description:

8mb async/page psram.

Note:

This datasheet PDF includes multiple part numbers: IS66WVE51216TCLL, IS66WVE51216EALL.
Please refer to the document for exact specifications by model.
