40N120

IXEH40N120

40N120 Features

* IGBT with NPT (non punch through) structure

* reverse blocking capability - function of series diode monolithically integrated, no external series diode required - soft reverse recovery

* positive temperature coefficient of saturation voltage

* Epoxy of TO-247 packa

40N120 Datasheet (104.95 KB)

Preview of 40N120 PDF

Datasheet Details

Part number:

40N120

Manufacturer:

IXYS Corporation

File Size:

104.95 KB

Description:

ixeh40n120.

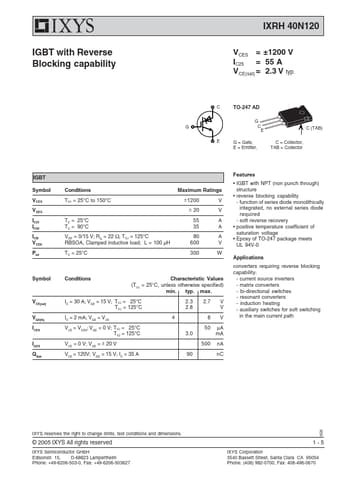

IGBT with Reverse Blocking capability IXRH 40N120 VCES = ±1200 V IC25 = 55 A VCE(sat) = 2.3 V typ. C TO-247 AD G G C E C (TAB) E G = Gate, C.
