* z 1.6 mm (0.063 in) from case for 10 s TC = 25°C 50/60 Hz RMS; IISOL ≤ 1 mA mounting force with clip 260 60 2500 1165 / 2.515 2 Silicon chip on Direct-Copper-Bond substrate - High power dissipation - Isolated mounting surface - 2500V electrical isolation Low cathode to tab capacitance (
DSEC16-06BC Datasheet (568.78 KB)
DSEC16-06BC
IXYS Corporation
568.78 KB
(dsea16-06bc / dsec16-06bc) hiperdynfred epitaxial diode isoplus220.
www.DataSheet4U.com

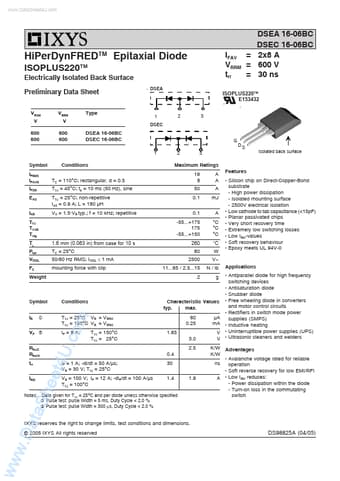

HiPerDynFREDTM Epitaxial Diode
ISOPLUS220TM
Electrically Isolated Back Surface Preliminary Data Sheet
VRSM V 600 600 VRRM V 600 6.
