IXDD430, IXDN430 (IXDx430) 30 Amp Low-Side Ultrafast MOSFET / IGBT Driver

IXDD430 Description

IXDN430 / IXDI430 / IXDD430 / IXDS430 30 Amp Low-Side Ultrafast MOSFET / IGBT Driver .
The IXDN430/IXDI430/IXDD430/IXDS430 are high speed high current gate drivers specifically designed to drive MOSFETs and IGBTs to their minimum switchi.

IXDD430 Features

* Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes
* Latch-Up Protected
* High Peak Output Current: 30A Peak
* Wide Operating Range: 8.5V to 35V
* Under Voltage Lockout Protection
* Ability to Disable Output under Faults

IXDD430 Applications

* Driving MOSFETs and IGBTs
* Motor Controls
* Line Drivers
* Pulse Generators
* Local Power ON / OFF Switch
* Switch Mode Power Supplies (SMPS)
* DC to DC Converters
* Pulse Transformer Driver
* Limiting di/dt Under Short Circu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IXDD430, IXDN430. Please refer to the document for exact specifications by model.

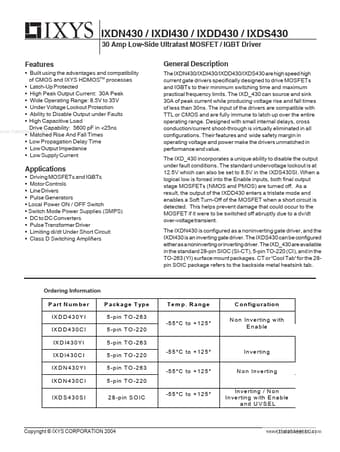

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXDD430, IXDN430
Manufacturer
IXYS Corporation
File Size
820.40 KB
Datasheet
IXDN430_IXYSCorporation.pdf
Description
(IXDx430) 30 Amp Low-Side Ultrafast MOSFET / IGBT Driver
Note
This datasheet PDF includes multiple part numbers: IXDD430, IXDN430.
Please refer to the document for exact specifications by model.
