* z 1.13/10 Nm/lb.in. 6 4 g g Symbol Test Conditions (TJ = 25°C, unless otherwise specified) VDSS VGS(th) IGSS IDSS RDS(on) VGS = 0 V, ID = 250 µA VDS = VGS, ID = 4 mA VGS = ±30 VDC, VDS = 0 VDS = VDSS VGS = 0 V TJ = 25°C TJ = 125°C Characteristic Values Min. Typ. Max. 600 2.0 4.5 ±100 25 1 0.35 V

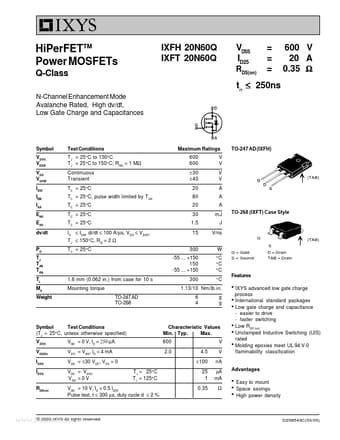

IXFH20N60Q Datasheet (163.86 KB)
IXFH20N60Q
IXYS Corporation
163.86 KB
Hiperfet power mosfets q-class.
HiPerFETTM Power MOSFETs
Q-Class
N-Channel Enhancement Mode Avalanche Rated, High dv/dt, Low Gate Charge and Capacitances
IXFH 20N60Q IXFT 20N60Q
VD.
