* D = Drain Tab = Drain Symbol Test Conditions (TJ = 25° C, unless otherwise specified) BVDSS VGS(th) IGSS IDSS RDS(on) VGS = 0 V, ID = 250 µA VDS = VGS, ID = 4 mA VGS = ± 30 VDC, VDS = 0 VDS = VDSS VGS = 0 V TJ = 125° C Characteristic Values Min. Typ. Max. 800 3.0 5.0 ± 200 25 1000 520 V V nA µA µ

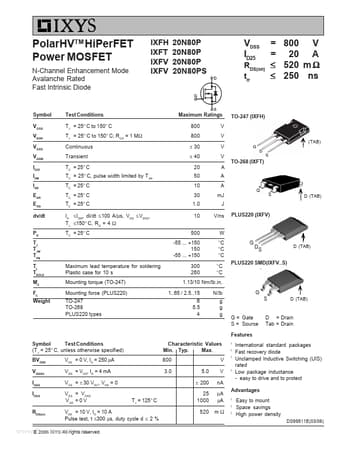

IXFH20N80P Datasheet (342.02 KB)
IXFH20N80P
IXYS Corporation
342.02 KB
Polarhv hiperfet power mosfet.
PolarHVTM HiPerFET Power MOSFET
N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode
IXFH IXFT IXFV IXFV
20N80P 20N80P 20N80P 20N80PS
VD.
