IXGC16N60B2D1 IGBT

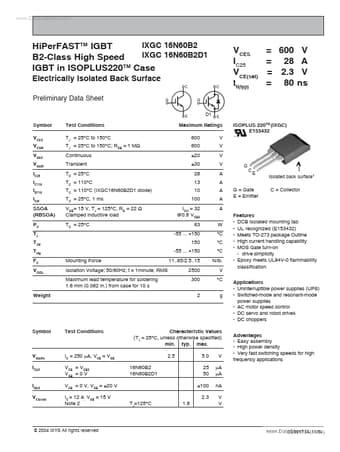

www.DataSheet4U.com IXGC 16N60B2 HiPerFASTTM IGBT IXGC 16N60B2D1 B2-Class High Speed IGBT in ISOPLUS220TM Case Electrically Isolated Back Surface Preliminary Data Sheet D1 VCES = 600 V = 28 A IC25 VCE(sat) = 2.3 V tfi(typ) = 80 ns Symbol VCES VCGR VGES VGEM IC25 IC110 ID110 ICM SSOA (RBSOA) PC TJ TJM Tstg FC VISOL Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MΩ Continuous Transient TC = 25°C TC = 110°C TC = 110°C (IXGC16N60B2D1 diode) TC = 25°C, 1 ms VGE = 15 V, TJ = 125°C,.

IXGC16N60B2D1 Features

* DCB Isolated mounting tab UL recognized (E153432) Meets TO-273 package Outline High current handling capability MOS Gate turn-on - drive simplicity Epoxy meets UL94V-0 flammability classification z z z z z z Weight Applications Uninterruptible power supplies (UPS) Switched-mode and resonant-mode p
